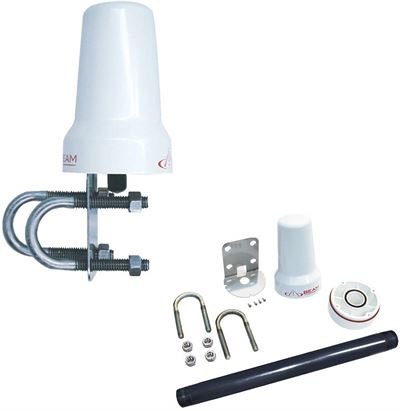

Iridium Beam Mast/Pole Antenna (RST710) The antenna is omnidirectional and therefore makes it an easy installation in any location. The Antenna is supplied with both straight pole mounting or right angle brackets depending on the installation location. The antenna has a recessed TNC female connector to make the cable connection inside the antenna and protected from harsh environments.

Discontinued see Related RST210
USD $265.00
• Iridium approved
• Designed for harsh environments
• Small and lightweight
• Weatherable polymer
• Manufactured in the USA
• 12 month warranty
GENERAL
Polarization Right Hand Circular
Axial Ratio 3.0dB Max at bore sight
Impedance 50 Ohms
VSWR ≤ 2.0 : 1
Power handling 10 Watts
Altitude 6,000m/20,000ft

FREQUENCY
Iridium 1616 – 1626 MHz

ENVIRONMENTAL
Extreme rain exposure 37 mm/10 min; 145 mm/24 h
Extreme snow exposure 3,0kN/m2
Wind 35m/s
Temperature Degrees ºC Degrees ºF
Operating -55 to +85 -67 to +185

PHYSICAL
Colour White
Finish Weatherable Polymer
Dimensions mm inches
Antenna 76.2 W x 162.31 H 3.0 W x 6.39 H
Box 320 x 90 x 95 12.6 x 3.54 x 3.74
Weight kgs lbs
Antenna 0.311 0.687
Box 0.78 1.72

CONNECTOR
Iridium TNC Female
