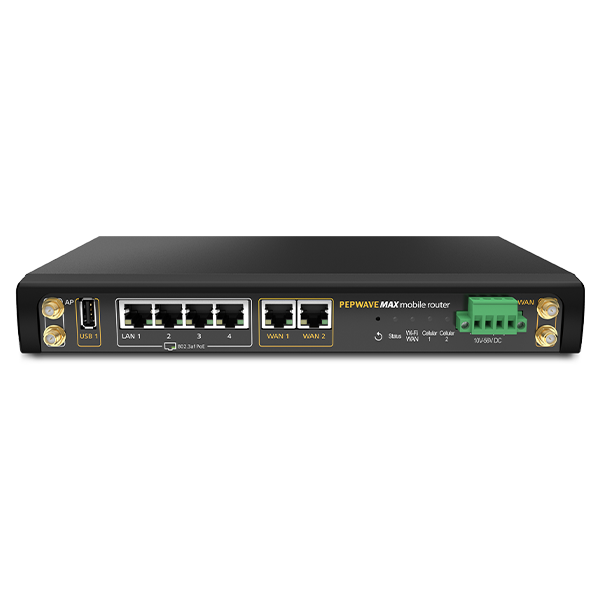

Peplink MAX HD2 The HD2 gives you blazing fast connectivity on the road with dual embedded cellular modems, SpeedFusion bandwidth bonding, simultaneous dual-band 11ac Wi-Fi and a built-in 4-port GE switch with PoE capability.

Call for Pricing
USD $0.00


Pepwave MAX Firmware


Support for PPPoE, Static IP, DHCP
WAN Link Health Check
Bandwidth Allowance Monitor
USB 3G/4G LTE Modem Support
IPv6 Support
Support for Dynamic DNS services


DHCP Server for LAN Clients
Extended DHCP Option
DHCP Reservation
DNS Proxy for LAN Clients
VLAN on LAN Support

Load Balancing

Intelligent Failover
Session Persistence
Per-Service Load Distribution
Multiple Algorithms
Least Used
Lowest Latency
Fastest Response Time

Global Positioning System

Integrated GPS
Device Location Map
Location Tracking Data
GPS eXchange Format (GPX)
Up to Seven Days
Fleet Management with InControl 2

Complete VPN Solution

PepVPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
Site-to-Site VPN
Bandwidth Aggregation
Hot Failover
256-bit AES Encryption
Pre-shared Key Authentication
Dynamic Routing
X.509 Certificate Support
PPTP/L2TP/OpenVPN Server
Local User, LDAP, RADIUS, Active Directory Authentication
IPsec VPN (Network-to-Network)
X.509 Certificate Support
GRE Tunnel (Network-to-Network)


NAT and IP Forwarding
Static Routes
Port Forwarding
Many to One, One to One NAT
NAT Pool
WINS Server
VRRP HA support


Stateful Firewall
DoS Prevention
Web Blocking

Advanced QoS

User Groups
Bandwidth Reservation
Individual Bandwidth Limit
Application Prioritization
By User Groups
Custom Application QoS

AP Controller

AP Controller Support
Wi-Fi Usage Statistics

Captive Portal Support

Support for Wired and Wireless LAN Clients
Support RADIUS Authentication
Time and Usage Quotas on Open Access Mode
Built-in Customizable Splash Page

Device Management

Web Administrative Interface
Command Line Interface
InControl Cloud Management
Email Notification
Active Client and Session Lists
Bandwidth Usage Statistics
Syslog Service
SNMP v1, v2c and v3

Package Content

12V3A Power Supply (ACW-602)
4x 5dBi Wi-Fi Antennas (ACW-341)
1x GPS Active Antenna (ACW-232)
4x 2dBi 4G LTE Antennas (4G LTE)
4x Magnetic RP-SMA Adaptor (ACW-800)
1 Pair of Mounting Brackets (ACW-721)

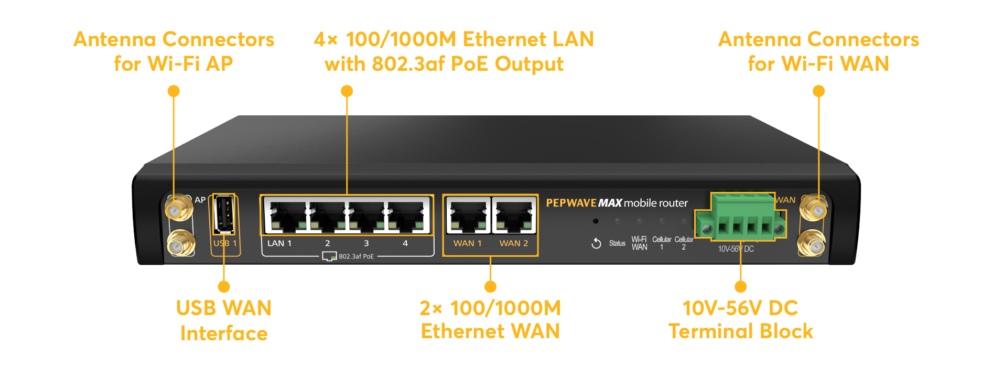

WAN Interface: 1x USB Interface
               2x GE
               2x Embedded LTE Modems

LAN Interface: 4x GE

Wi-Fi Interface: 802.11ac 1166 Mbps Wi-Fi WAN and/or AP 802.11ac/a/b/g/n, 1166 Mbps 2x2 MIMO
                 Wi-Fi WAN and/or AP Simultaneous Dual-Band

Recommended Users: 150

Router Throughput:  400Mbps

LTE Modem Downlink/Uplink Datarate:  100Mbps/50Mbps

LTE-A Modem Downlink/Uplink Datarate: 300Mbps/50Mbps

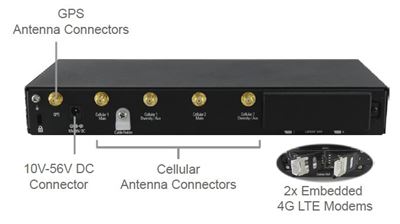

Cellular and GPS Antenna Connector:  4x SMA Antenna Connectors
                                     1x SMA GPS Antenna Connector
                                     4x RP-SMA Wi-Fi Antenna Connectors

Power Input: DC Jack/Terminal Block: 10V - 56V, 3A

Power Output: Up to Four 802.3af PoE Outputs#

Power Consumption: 28W (max.)

Weight 1 kg 2.2 pounds

Humidity: 15% – 95% (non-condensing)

Dimensions: 1.6 x 10.2 x 5.6 inches
            40 x 260 x 143 mm

Operating Temperature -40° – 149°F
                      -40° – 65°C
Certifications: FCC, CE, RoHS, E-Mark, IC
                RF Port Lightning Immunity: ITU-T K.20 (+/- 1.5 kV)
                Shock and Vibration Resistance: EN 61373:2010
                Railway Applications: EN 50155
                Electromagnetic Compatibility: EN 61000

Warranty 1-Year Limited Warranty
