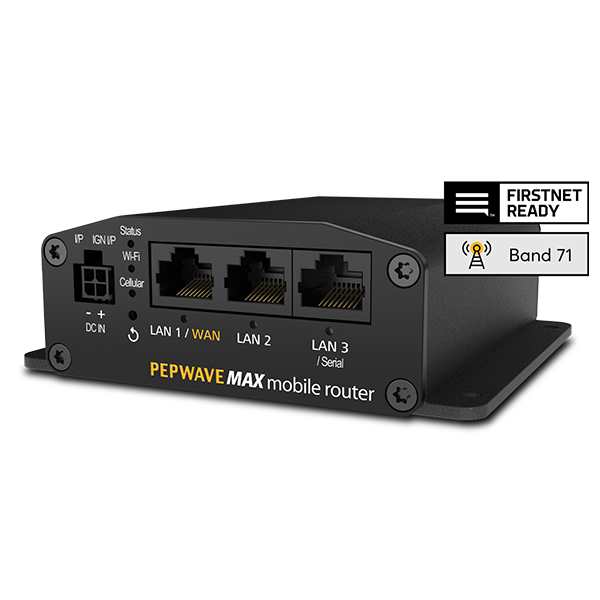

Peplink MAX Transit Mini Band 71 and FirstNet Ready
The Transit Mini supports both band 71 and FirstNet, providing additional coverage as the situation demands. Band 71 operates at a 600MHz frequency that travels twice as far and works four times better in buildings than conventional LTE bands. This means Band 71 provides better coverage in remote areas as well as indoors. FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity.

Call for Pricing
USD $0.00
Full SpeedFusion Capability
Peplink PrimeCare enables full SpeedFusion (Bonding, WAN Smoothing, Hot Failover), opening up deployment possibilities for any PrimeCare device. For example, the MAX Transit Duo will be upgraded with full SpeedFusion in order to enable faster file transfer and higher quality streaming from mobile locations. Use WAN Smoothing to deliver smooth and consistent videoconferencing, protecting it from packet loss.

Made for Mobility
The MAX Transit Mini has specialized features for vehicular deployments. Ignition sensing, which detects the ignition status of the vehicle, enables the device to turn on and off as the vehicle starts up and shuts down. It is also equipped with GPS, enabling you to track its movements. With InControl's fleet management, you can review the route history of all your vehicles from any web browser.

Scalable Management
With a footprint of 4.1 x 4.3 inches, the Transit Mini can fit in just about any small space. It can be powered using Passive PoE, reducing the number of wires in the vehicle. Most importantly, the Transit Mini can be remotely managed by
InControl cloud management^. This enables you to bulk push configurations and firmware updates, ensuring infinite scalability

Cellular WAN Interfaces

Single LTE Modem

Redundant SIM Slot


SpeedFusion Hot Failover

Yes ^

SpeedFusion WAN Smoothing

Yes ^

WAN Interface

1x 10/100M Ethernet Port ^

LAN Interface

3x 10/100M Ethernet Port
(1x WAN Port shared with LAN Interface)
(1x Serial Port shared with LAN Interface)

Load Balancing


Stateful Firewall Throughput


Recommended Users


LTE Modem

Downlink/Uplink Data Rate:
LTE Modem 150Mbps/50Mbps

Wi-Fi Standard

802.11b/g/n Wi-Fi WAN^ and AP

Antenna Connectors

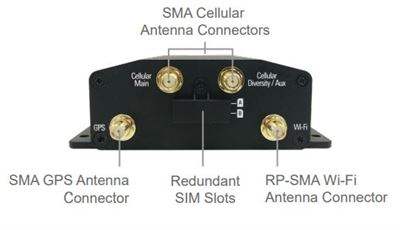

2x SMA Cellular, 1x SMA GPS, 1x RP-SMA Wi-Fi

Power Input

Passive PoE Input (WAN Port, 12V – 28V DC) / Power + GPIO

Power Consumption

12W (max.)


4.1 x 4.3 x 1.2 inches |
105 x 110 x 30 mm


0.54 pound |
244 grams

Operating Temperature

-40 ° – 149 °F
-40 ° – 65 °C


15% – 95% (non-condensing)


-EN 61000: Electromagnetic Compatibility
-EN61373: Rolling Stock


1-Year Limited Warranty


^ Requires PrimeCare Subscription, complementary for the first year.

All specifications are subject to change without notice.


·         MAX Transit Mini

·         1x GPS Antenna

·         1x WiFi Antenna

·         2x 2dBi 4G LTE Antennas

·         1x DC Cable (ACW-634)
