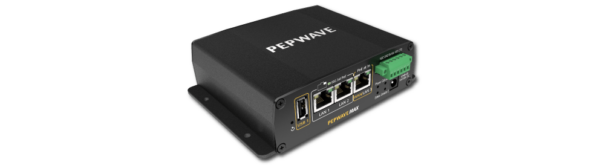

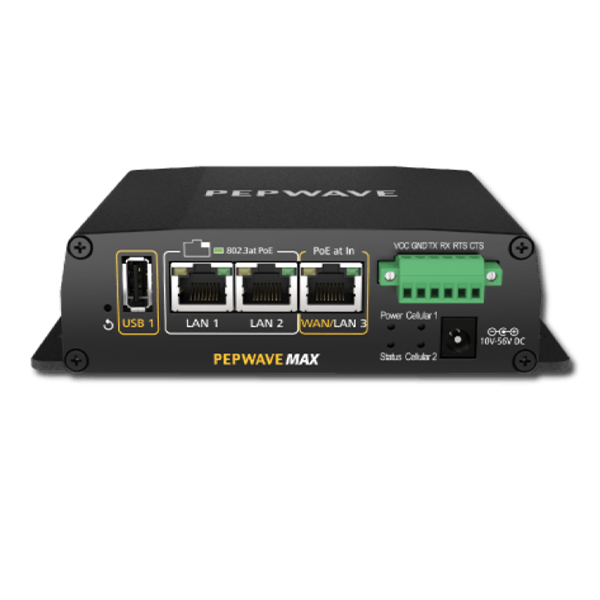

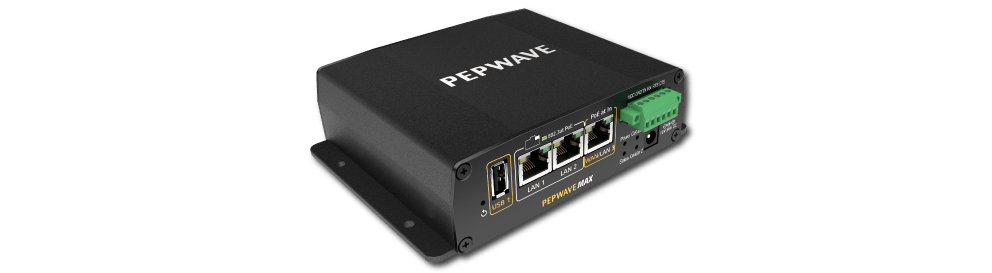

Peplink MAX HD2 Mini
The MAX HD2 Mini packs big features, such as dual embedded cellular, SpeedFusion bandwidth bonding, and PoE, into a tough, compact enclosure that stands up to life on the go.
Call for Pricing
Price:
USD $0.00
Features
Specifications
Support Documents
Financing Information
Related Products
Dual Cellular and Redundant SIM Slots
Dual Cellular and Redundant SIM slots allow you to use the same or different cellular providers for bandwidth bonding, data overage protection or eliminating blind spots.
Fleet Tracking and Management
With built-in GPS fleet tracking and InControl cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.
Meet Strict Security Compliance
Got a strict no-Wi-Fi security policy? Configured without Wi-Fi, the BR1 ENT is a great choice for deployments with compliance requirements.
SpeedFusion Bandwidth Bonding and Seamless Failover
SpeedFusion bandwidth bonding technology bonds all connected bandwidth into a single superfast stream, using the same or different cellular providers.
Customize Captive Portal
Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS
Certified Toughness
In addition to rugged metal enclosure, HD2 Mini has certifications on:
RF Port Lightning Immunity:
ITU-T K.20 (+/- 1.5 kV)
Shock and vibration resistance
(EN 61373:1999, IEC 61373:1999)
Railway applications (EN 50155)
Electromagnetic Compatibility (EN 61000)
WAN Interface
1x USB Interface
1x GE
2x Embedded LTE Modems with Redundant SIM Slots
LAN Interface
2x GE
Router Throughput
300Mbps
Recommended Users
150
LTE Modem
Downlink/Uplink Datarate:
100Mbps/50Mbps

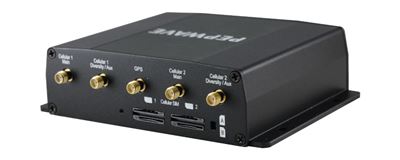

Cellular and GPS Antenna Connector
4x SMA Antenna Connectors
1x SMA GPS Antenna Connector

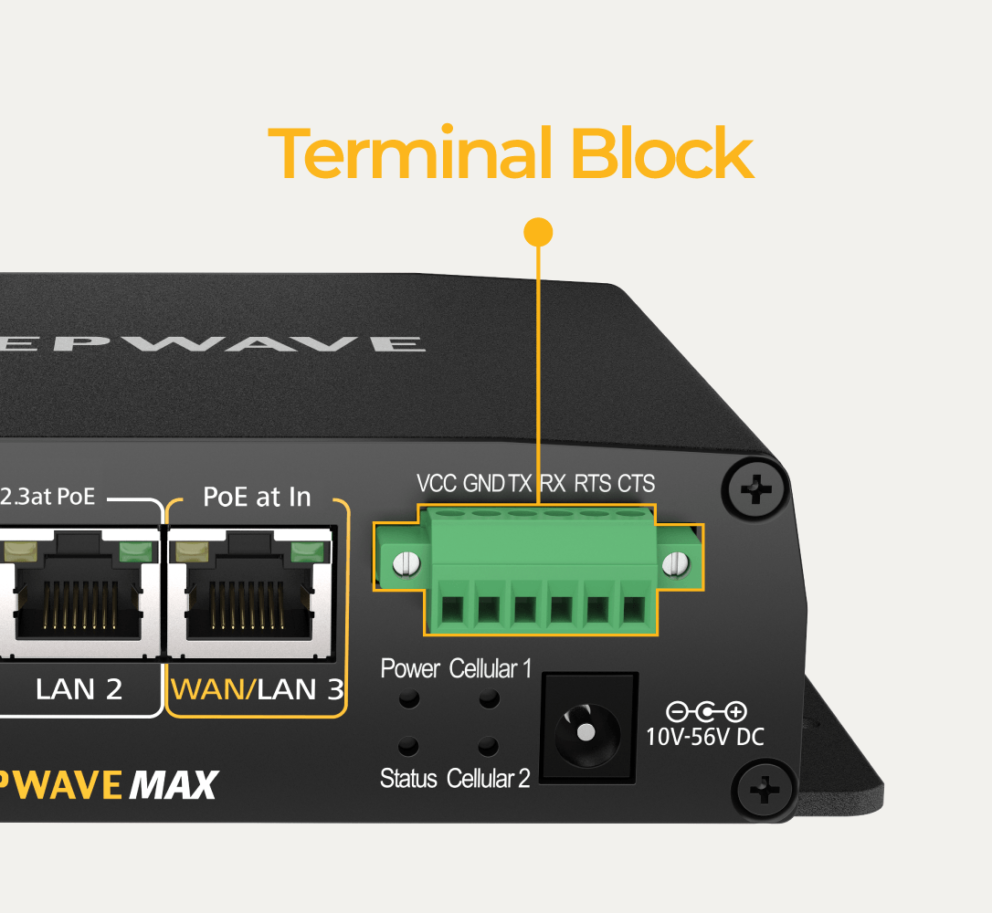

Power Input
DC Jack/Terminal Block: 12V – 48V 2A

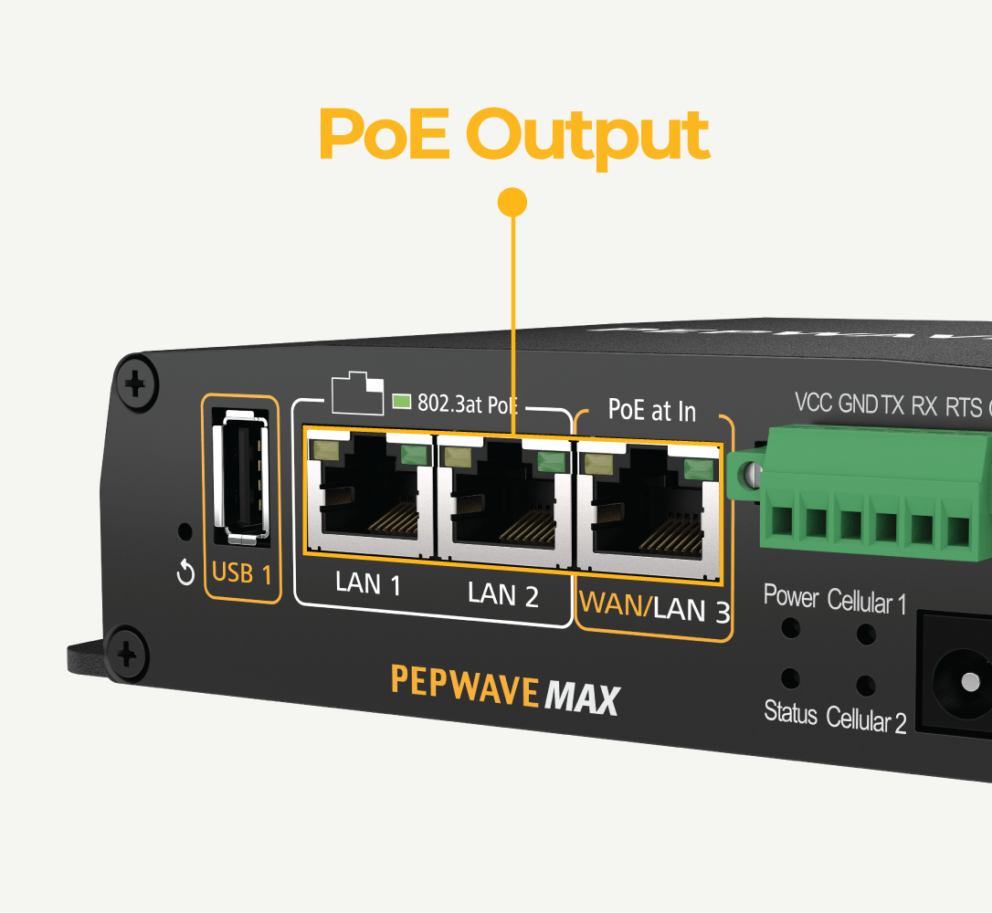

Power Output
Up To Three 802.3af/24V Pepwave Passive PoE Outputs#
Dimensions
1.6 x 5.8 x 5 inches
40 x 147 x 128 mm
Operating Temperature
-40° – 149°F
-40° – 65°C
