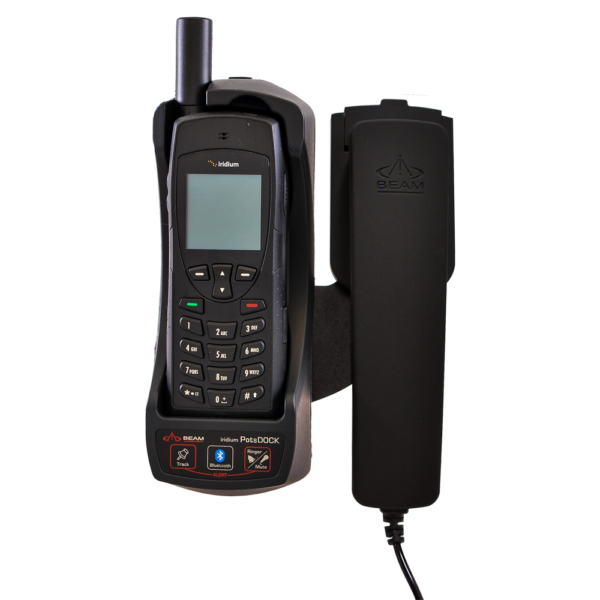

PotsDOCK 9555 is a docking station that allows the Iridium 9555 handset to be used in a wide variety of applications. The intelligent RJ11 / POTS interface enables standard corded, cordless or DECT handsets to be used or alternatively interfaced with a PBX system presenting standard ring, busy and dial tones like a standard phone network.
POTSDOCK 9555 CRADLE -Securely holds 9555 handset -Robust design and construction -Charges 9555 handset ready for use -Integrated antenna connection -Integrated USB connectivity POTS/RJ11 -Supports standard cordless & corded telephones (5 REN) -RJ11 can be run 600m (2000 ft) from unit -Corded, cordless or DECT handsets -Easily integrated to PBX system -Ring, busy & dial tones -Superior voice quality TRACKING/GPS -Tracking & alert monitoring capable -Periodic position reports or remotely polled -Triggered position status message -In-built GPS engine -Interfaces to Beam’s LeoTRAK-Online -Also compatible with other tracking applications INTEGRATED BLUETOOTH® -Bluetooth® in-built in cradle -Supports Bluetooth® voice accessories
Includes: PotsDOCK Cradle Universal Mounting Arm 10-32V DC or AC pack & DC leads
Specifications
Power Consumption at 12V DC
Standby – incl handset & RJ111.1W (90mA @ 12Vin)
Transmit – incl handset & RJ11 When battery charged 6W (0.5A @ 12Vin)
Dimensions
-PotsDOCK
200 x 75 x 65mm
7.9 x 3.0 x 2.6inches
-Packed
325 x 140 x 88mm
12.8×5.5×3.5inches
Weight0.32kg1.3lbs
PotsDOCK 9555
Operating Temperature Range -20 to +70 -4 to +158
Handset Operating Temperature Range
Degrees °C -10 to +55Degrees °F -14 to +131
Charging Temp. Range0 to +4032 to 113
Operating Humidity Range < 85% RH non-condensing
Storage Temperature -30 to +70
Beam PotsDOCK 9555
$850.00
PotsDOCK 9555 is a docking station that allows the Iridium 9555 handset to be used in a wide variety of applications. The intelligent RJ11 / POTS interface enables standard corded, cordless or DECT handsets to be used or alternatively interfaced with a PBX system presenting standard ring, busy and dial tones like a standard phone network.
Handset not Included
Description

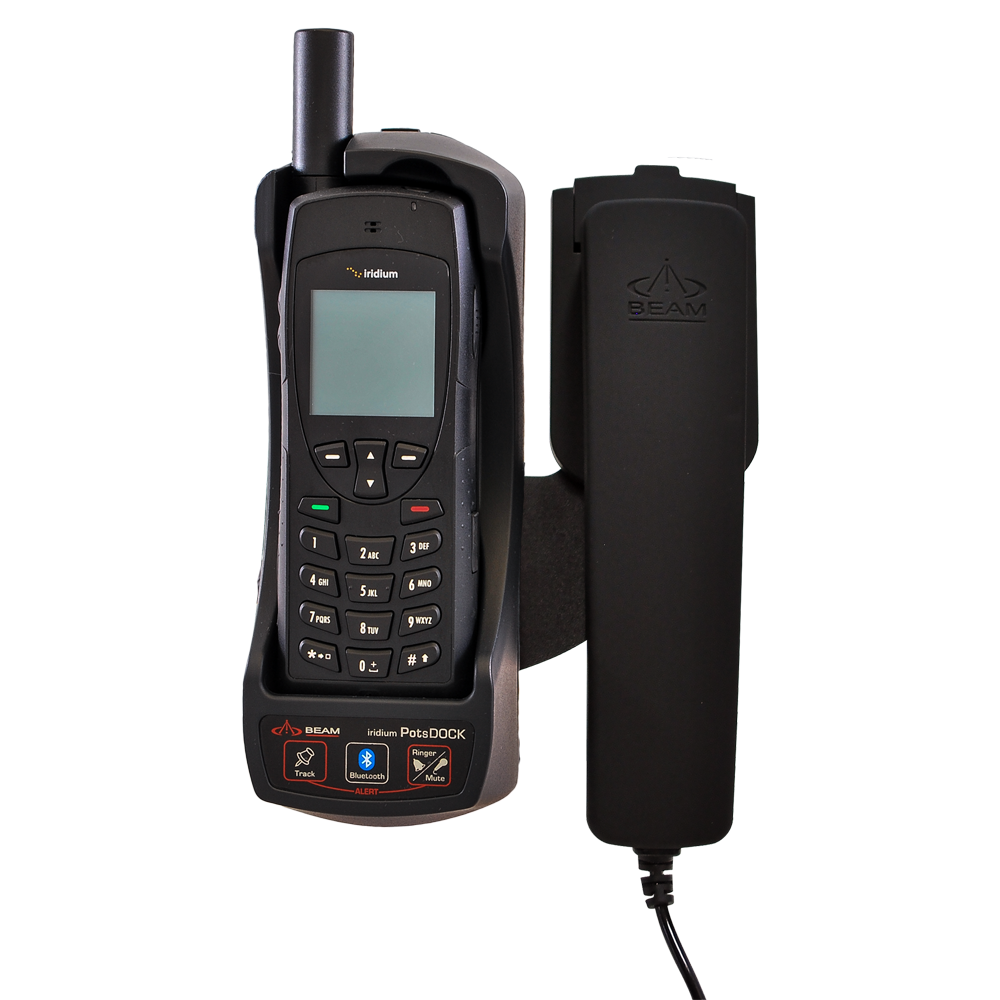

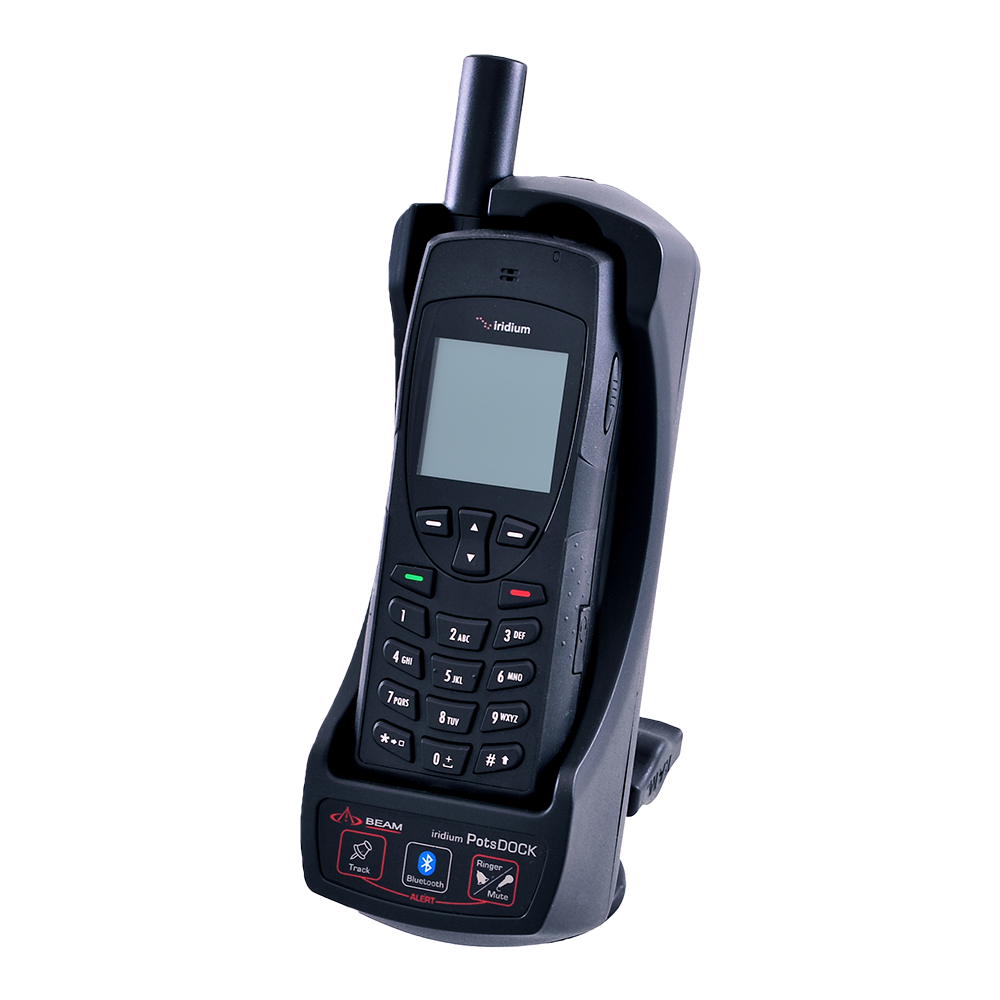

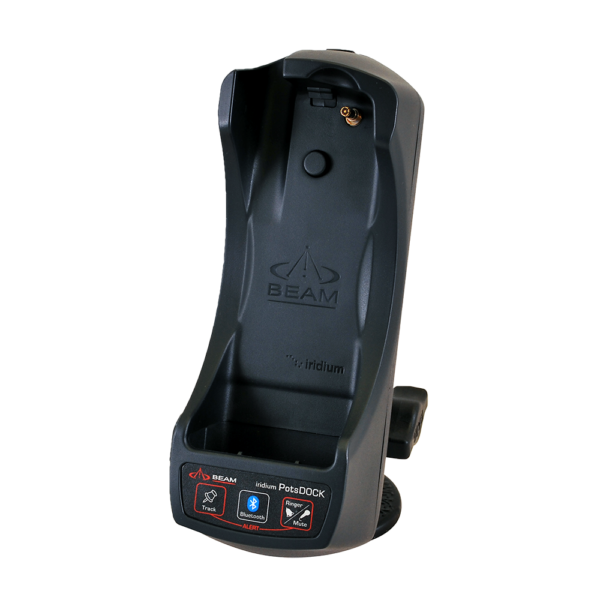

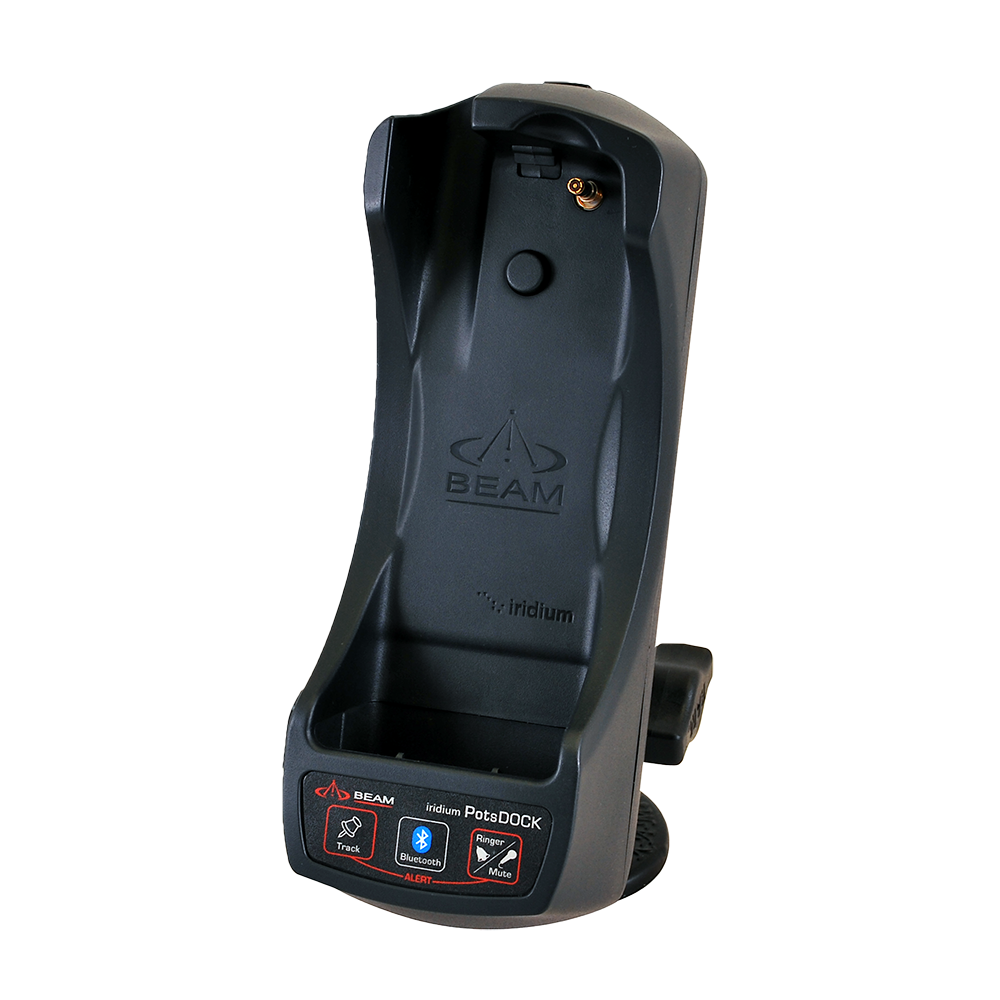

POTSDOCK 9555 CRADLE
-Securely holds 9555 handset
-Robust design and construction
-Charges 9555 handset ready for use
-Integrated antenna connection
-Integrated USB connectivity
POTS/RJ11
-Supports standard cordless & corded
telephones (5 REN)
-RJ11 can be run 600m (2000 ft) from unit

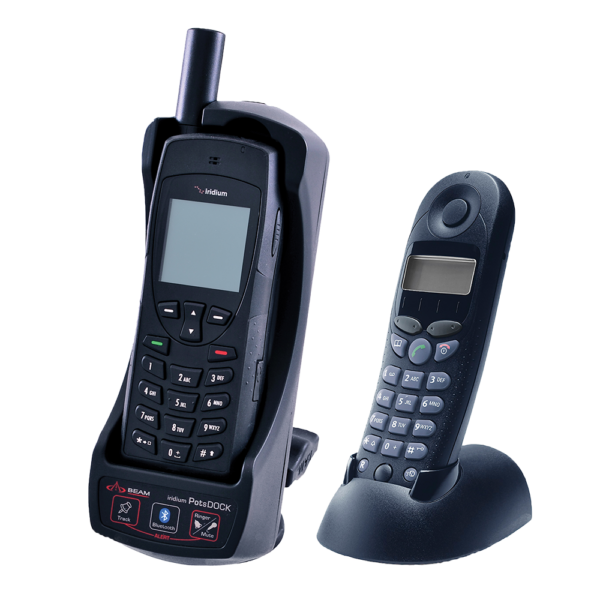

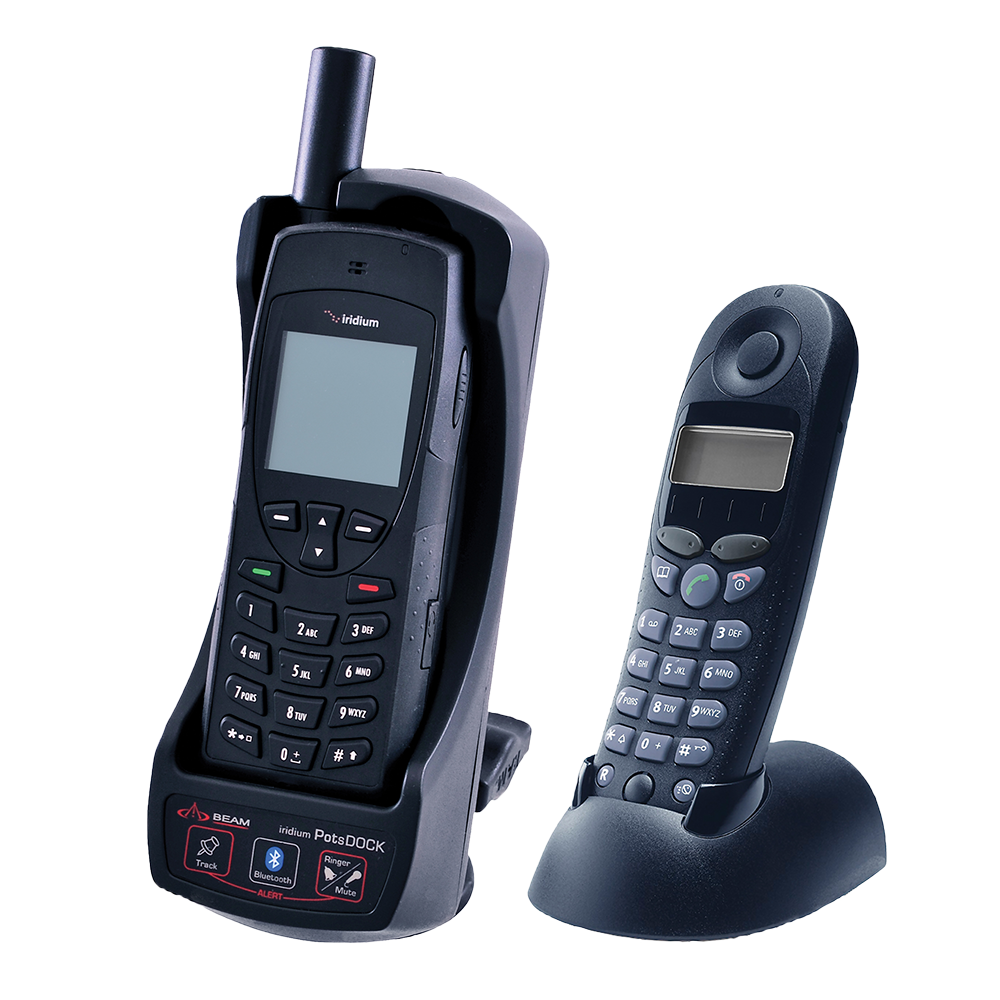

-Corded, cordless or DECT handsets
-Easily integrated to PBX system
-Ring, busy & dial tones
-Superior voice quality
TRACKING/GPS
-Tracking & alert monitoring capable
-Periodic position reports or remotely polled
-Triggered position status message
-In-built GPS engine
-Interfaces to Beam’s LeoTRAK-Online
-Also compatible with other tracking applications
INTEGRATED BLUETOOTH®
-Bluetooth® in-built in cradle
-Supports Bluetooth® voice accessories
Includes:
PotsDOCK Cradle

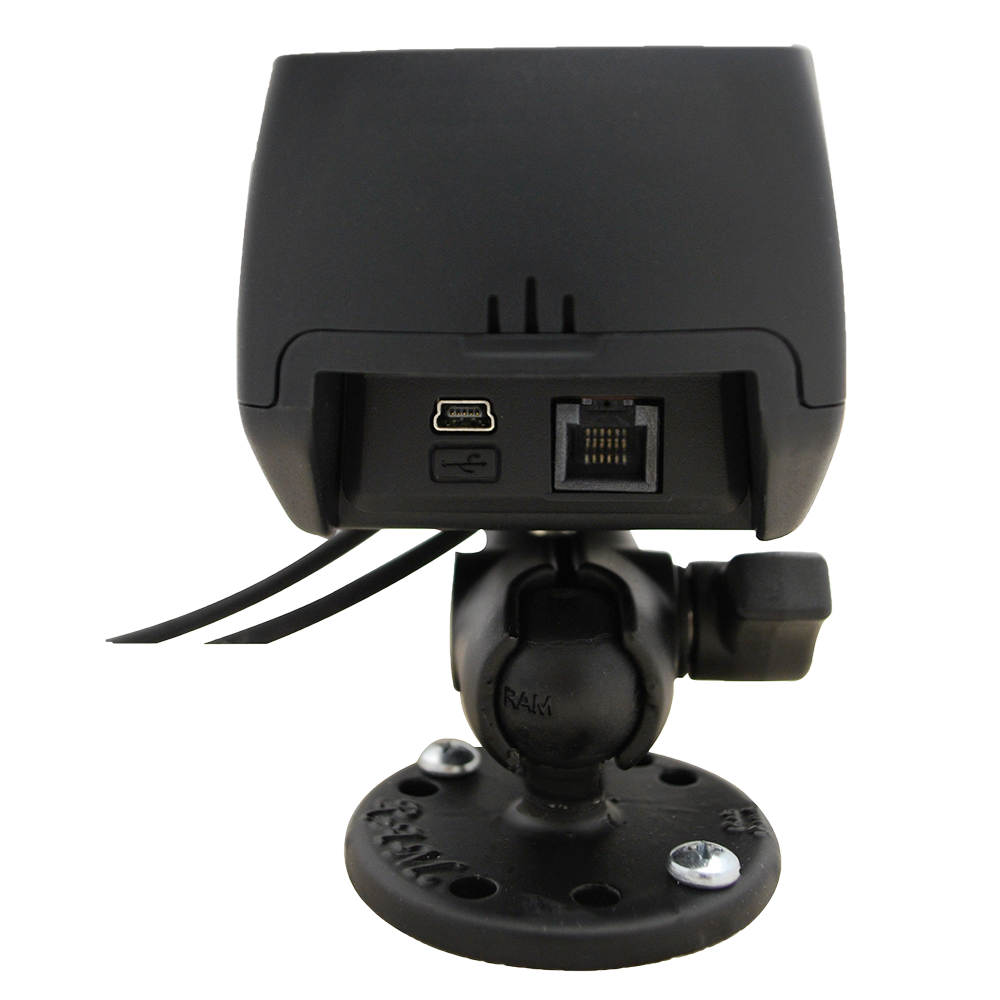

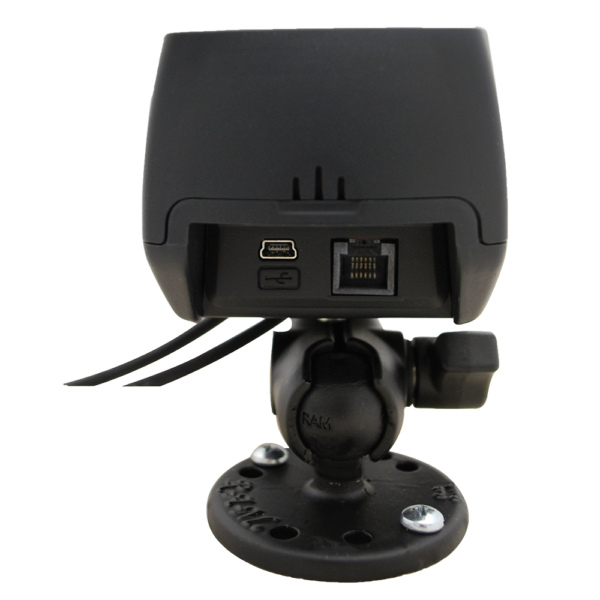

Universal Mounting Arm

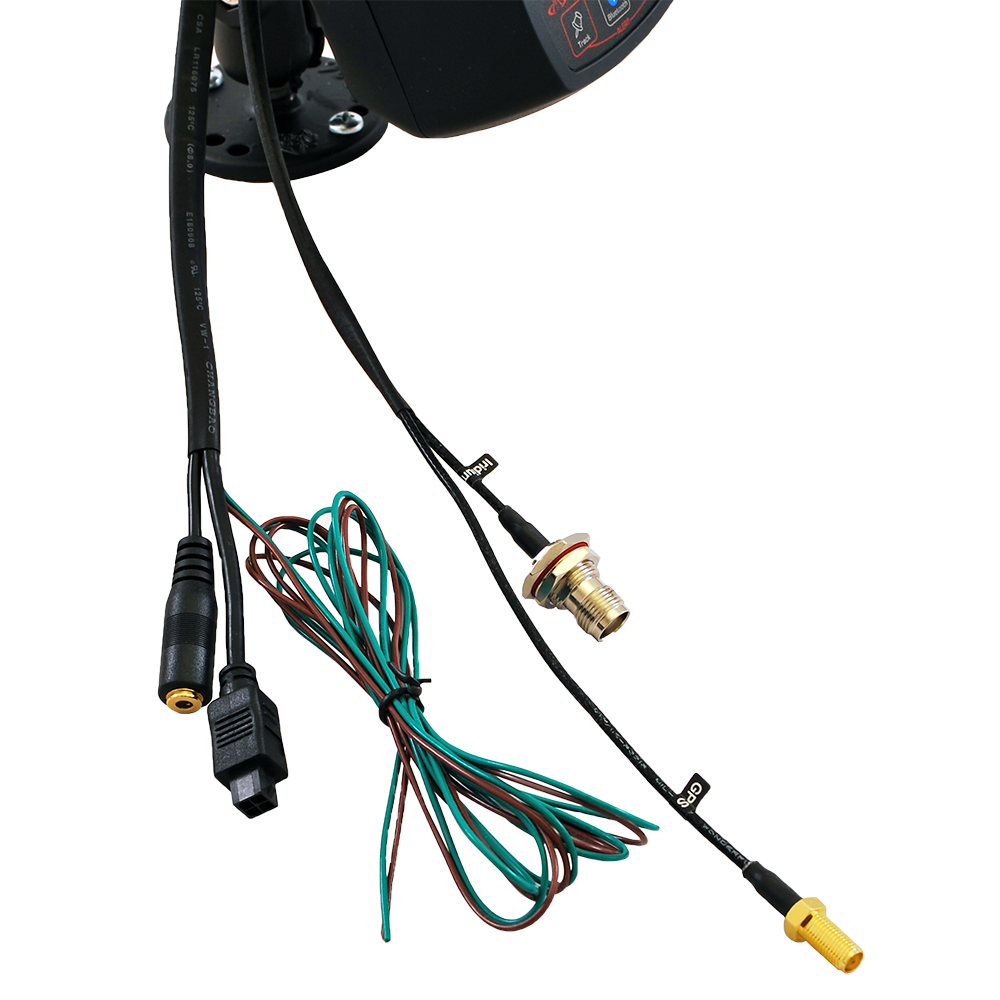

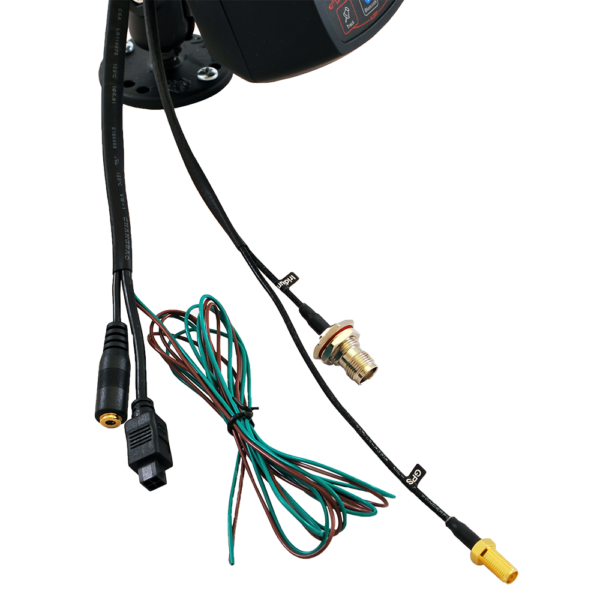

10-32V DC or AC pack & DC leads
Specifications
Power Consumption at 12V DC
Standby – incl handset & RJ11 1.1W (90mA @ 12Vin)
Transmit – incl handset & RJ11 When battery charged 6W (0.5A @ 12Vin)
Dimensions
-PotsDOCK
200 x 75 x 65mm
7.9 x 3.0 x 2.6inches
-Packed
325 x 140 x 88mm
12.8×5.5×3.5inches
Weight 0.32kg 1.3lbs
PotsDOCK 9555
Operating Temperature Range -20 to +70 -4 to +158
Handset Operating Temperature Range
Degrees °C -10 to +55 Degrees °F -14 to +131
Charging Temp. Range 0 to +40 32 to 113
Operating Humidity Range < 85% RH non-condensing
Storage Temperature -30 to +70
Support Documents
Iridium 9555 BeamPotsDOCK Data Sheet.pdf
