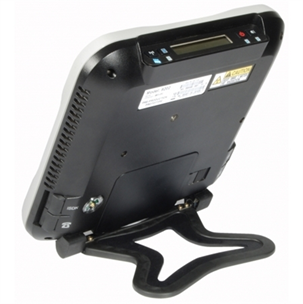

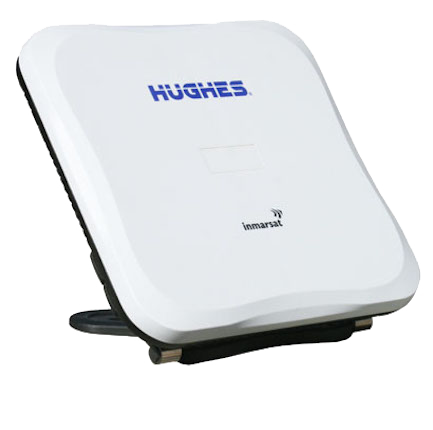

The reliable and lightweight Hughes 9202 Land Portable Terminal boasts a compact and sleek design. A budget-friendly and highly attractive class 2 portable terminal, the Hughes 9202 is ideal for governments and NGOs, first responders, public safety and mobile health care workers, and remote personnel in industries such as utility, oil and gas, forestry, cable, and telecommunications.
Full ISDN support including Unrestricted Digital Information (UDI)
Advanced integrated user interface
Automatic Context Activation
XL-band ready
Interfaces
Ethernet connection (RJ45)
ISDN connection (RJ45)
Two-line RJ11 for voice and fax
Compass and audio tone to assist in antenna pointing
Specifications
Satellite TX Frequency
-1626.5-1660.5 and 1667.3-1676.2 MHz
Satellite RX Frequency
-1518-1559 MHz
GPS Frequency
-1574.42-1576.42 MHz
SAT Continuous TX time
-Up to 3.25 hours at 128 kbs
SAT Continuous RX Time
-Up to 5.5 hours at 128 kbps
Weight
-<1.5Kg (3.3lbs)
Dimensions
-216 mm x 216 mm x45 mm (8.5”x 8.5”x 1.8”)
Operating Temperature
–5C to +55C with battery -25C to +60C with DC supply
Battery Charging Temperature
-0 C to +40C
Storage Temperature
–20C to +60C with Battery -25C to +80C excluding battery
Humidity
-95% RH at +40C
Wind
-Operational wind loading (with stand secured to ground) 40km/h (25mph)
Water and Dust
-I-55 Compliant
Non-operational Mechanical Vibration
-200-2000Hx, 0.3 m2/s3; MIL-SPEC 810B METHOD 500.3 procedure 1
Data Connectivity
-RJ45 connector Two-line RJ11 for voice and fax 802.11 WLAN RJ45 connector (ISDN)
Other Features Rechargeable lithium ion battery SIM/USIM Slot (behind battery) ¼ inch UNC threaded hole for tri
BGAN Hughes 9202
$2,995.00
The reliable and lightweight Hughes 9202 Land Portable Terminal boasts a compact and sleek design. A budget-friendly and highly attractive class 2 portable terminal, the Hughes 9202 is ideal for governments and NGOs, first responders, public safety and mobile health care workers, and remote personnel in industries such as utility, oil and gas, forestry, cable, and telecommunications.
Description
Rugged and durable IP55 rating
Backlit LCD user display including four-button
Wi-Fi inside supporting multi-user access
Two-line RJ11 for voice and fax
Full ISDN support including Unrestricted Digital Information (UDI)
Advanced integrated user interface
Automatic Context Activation
XL-band ready
Interfaces
Ethernet connection (RJ45)
ISDN connection (RJ45)
Two-line RJ11 for voice and fax
Compass and audio tone to assist in antenna pointing
Specifications
Satellite TX Frequency
-1626.5-1660.5 and 1667.3-1676.2 MHz
Satellite RX Frequency
-1518-1559 MHz
GPS Frequency
-1574.42-1576.42 MHz
SAT Continuous TX time
-Up to 3.25 hours at 128 kbs
SAT Continuous RX Time
-Up to 5.5 hours at 128 kbps
Weight
-<1.5Kg (3.3lbs)
Dimensions
-216 mm x 216 mm x45 mm (8.5”x 8.5”x 1.8”)
Operating Temperature
–5C to +55C with battery -25C to +60C with DC supply
Battery Charging Temperature
-0 C to +40C
Storage Temperature
–20C to +60C with Battery -25C to +80C excluding battery
Humidity
-95% RH at +40C
Wind
-Operational wind loading (with stand secured to ground) 40km/h (25mph)
Water and Dust
-I-55 Compliant
Non-operational Mechanical Vibration
-200-2000Hx, 0.3 m2/s3; MIL-SPEC 810B METHOD 500.3 procedure 1
Data Connectivity
-RJ45 connector Two-line RJ11 for voice and fax 802.11 WLAN RJ45 connector (ISDN)
Other Features Rechargeable lithium ion battery SIM/USIM Slot (behind battery) ¼ inch UNC threaded hole for tri
Support Documents
BGAN Hughes 9202 Data Sheet.pdf
