The Cradlepoint COR IBR900 Series is a ruggedized 3G/4G LTE networking platform that is purpose-built to meet the needs of in-vehicle use and can provide connectivity across a broad range of M2M and IoT applications. This cloud-managed routing platform supports Cradlepoint NetCloud Perimeter and the Extensibility Platform to meet an array of customer connectivity needs and applications.
WAN
• Dual-modem capable with optional COR Extensibility Dock
• LP6: LTE Advanced LTE/HSPA+ (SIM-based, Auto-carrier Selection for all North American, European, and Asia Pacific carriers; includes support for 700 MHz Band 28 in Asia Pacific)
• LP5: Cat 6 LTE Advanced for operators in Asia Pacific and Saudi Arabia (SIM-based Auto-carrier selection)
• LPE: 4G LTE/HSPA+/EVDO (multi-carrier)
• WiFi as WAN¹, with WPA2 Enterprise Authentication for WiFi as WAN³
• Failover/Failback
• Load Balancing
• Advanced Modem Failure Check
• WAN Port Speed Control
• WAN/LAN Affinity
• IP Passthrough
• Standby
LAN
• VLAN 802.1Q
• DHCP Server, Client, Relay
• DNS and DNS Proxy
• DynDNS
• UPnP
• DMZ
• Multicast/Multicast Proxy
• QoS (DSCP and Priority Queuing)
• MAC Address Filtering
WIFI1
• Dual-Band, dual-concurrent
• 802.11 a/b/g/n/ac wave 2
• MU-MIMO and 256 QAM support
• Up to 128 connected devices (64 per radio – 2.4 GHz and 5 GHz)
• Multiple SSIDs: 2 per radio (4 total)
• WPA2 Enterprise (WiFi)
• Hotspot/Captive Portal
• SSID-based Priority
• Client Mode for faster data offload
MANAGEMENT
• Cradlepoint NetCloud Manager²
• Web UI, API, CLI
• Active GPS support on all models
• Data Usage Alerts (router and per client)
• Advanced Troubleshooting (support)
• Device Alerts
• SNMP
• SMS control
• Serial Redirector
• Auto APN Recovery
• Syslog
VPN AND ROUTING
• IPsec Tunnel – up to ten concurrent sessions
• L2TP³
• GRE Tunnel
• OSPF/BGP/RIP³
• Route Filters (Access Control Lists, Prefix Filters, Route Maps, Communities for BGP)
• Per-Interface Routing
• Routing Rules
• Policy-based Routing
• NAT-less Routing
• Virtual Server/Port Forwarding
• NEMO/DMNR³
• IPv6
• VRRP³
• STP³
• NHRP³
• VTI Tunnel support³
• OpenVPN support³
• CP Secure VPN compatible
• Serial PAD Mode
SECURITY
• RADIUS and TACACS+ support*
• 802.1x authentication for Ethernet**
• Zscaler integration³
• Certificate support
• ALGs
• MAC Address Filtering
• Advanced Security Mode (local user management only)
• FIPS 140-2 Inside4
• Per-Client Web Filtering
• IP Filtering
• Content Filtering (basic)
• Website Filtering
• Zone-Based Object Firewall with host address (IP or FQDN), port, and MAC address
*-Native support for authentication. Authorization and accounting support through hotspot/captive portal services.
**-802.1x Authentication for Ethernet not available for FIPS SKUs.
CLOUD OPTIMIZED IP COMMUNICATIONS
• Automated WAN Failover/Failback support
• WAN Affinity and QoS allow prioritization of VoIP services
• Advanced VPN connectivity options to HQ
• SIP ALG and NAT to allow VoIP and UC communications to traverse firewall
• MAC Address Filtering
• 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN
• Private Network support (wired and 4G WAN)
• Cloud-based management²
1 – WiFi-related functions are only supported on IBR900 models
2 – NetCloud Manager requires a subscription
3 – Requires an Extended Enterprise License or NetCloud Manager PRIME
4 – FIPS 140-2 Inside SKUs are designated with an “F” prefix
Specifications
WAN:
• Dual-modem capable with optional COR Extensibility Dock
• Integrated LP6 Category 6 LTE Advanced LTE modem (with DC-HSPA+ failover) or LP5 Category 6 LTE Advanced LTE
modem (with DC-HSPA+ failover)
• Two LAN/WAN switchable 10/100/1000 Gigabit Ethernet ports – one default WAN (cable/DSL/T1/satellite/Metro
Ethernet)
• WiFi as WAN, Metro WiFi; 2×2 MIMO “N” 2.4 GHz or 5 GHz; 802.11 a/b/g/n/ac wave 2 (IBR900 only)
LAN:
• Dual-band, dual-concurrent WiFi; 802.11 a/b/g/n/ac wave 2 (IBR900 only)
• Two LAN/WAN switchable 10/100/1000 Gigabit Ethernet ports – one default LAN
• Serial console support for Out-of-Band Management of a connected device
PORTS:
• Power
• 2-wire GPIO
• Add more GPIO ports with optional 9-wire GPIO cable or COR Extensibility Dock (see Accessories section below)
• USB 2.0
• Two Ethernet LAN/WAN
• Two cellular antenna connectors (SMA)
• One active GPS antenna connector (SMA)
• Two WiFi antenna connectors (R-SMA)
• 15-pin dock port for COR Extensibility Dock or 9-wire GPIO cable
TEMPERATURE:
• -30 °C to 70 °C (-22 °F to 158 °F) operating with optional* 9-wire power and GPIO cable (Part #170680-000)
• -30 °C to 70 °C (-22 °F to 158 °F) operating with optional extended temperature AC power supply (Part #170648-000; see this page for line cord details)
• -20 °C to 60 °C (-4 °F to 140 °F) operating with included† standard AC power supply
• -40 °C to 85 °C (-40 °F to 185 °F) storage
* – included with “-NPS” version
† – not included with “-NPS” version
HUMIDITY (non-condensing):
• 5% to 95% operating
• 5% to 95% storage
POWER:
• DC input steady state voltage range: 9–33 VDC (requires inline fuse for vehicle installations)
• For 9–24 VDC installations, use a 3 A fuse
• For > 24 VDC installations, use a 2.5 A fuse
• Reverse polarity and transient voltage protection per ISO 7637-2
• Ignition sensing (automatic ON and time-delay OFF)
• Power consumption:
• Idle: 4 W
• WiFi Tx/Rx: 9 W
• LTE Tx/Tx: 6.25 W
• 12 VDC / 2 A adapter recommended
• Horizontal: < 2 m (50%); < 5 m (90%)
• Altitude: < 4 m (50%); < 8 m (90%)
• Velocity: < 0.2 m/s
• Acquisition (measured with signal strength = -135 dBm):
• Hot start: 1 second
• Warm start: 29 seconds
• Cold start: 32 seconds
• Sensitivity
• Tracking: -160 dBm (tracking sensitivity is the lowest GNSS signal level for which the device can still detect
an in-view satellite 50% of the time when in sequential tracking mode)
• Acquisition (standalone): -145 dBm (acquisition sensitivity is the lowest GNSS signal level for which the
device can still detect an in-view satellite 50% of the time)
• Operational limits: altitude < 6000 m or velocity < 100 m/s (either limit may be exceeded, but not both)

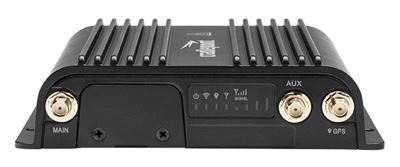

Cradlepoint IBR900 Mobile Router
The Cradlepoint COR IBR900 Series is a ruggedized 3G/4G LTE networking platform that is purpose-built to meet the needs of in-vehicle use and can provide connectivity across a broad range of M2M and IoT applications. This cloud-managed routing platform supports Cradlepoint NetCloud Perimeter and the Extensibility Platform to meet an array of customer connectivity needs and applications.
Call for Pricing
Description
WAN
• Dual-modem capable with optional COR Extensibility Dock
• LP6: LTE Advanced LTE/HSPA+ (SIM-based, Auto-carrier Selection for all North American, European, and Asia Pacific carriers; includes support for 700 MHz Band 28 in Asia Pacific)
• LP5: Cat 6 LTE Advanced for operators in Asia Pacific and Saudi Arabia (SIM-based Auto-carrier selection)
• LPE: 4G LTE/HSPA+/EVDO (multi-carrier)
• WiFi as WAN¹, with WPA2 Enterprise Authentication for WiFi as WAN³
• Failover/Failback
• Load Balancing
• Advanced Modem Failure Check
• WAN Port Speed Control
• WAN/LAN Affinity
• IP Passthrough
• Standby
LAN
• VLAN 802.1Q
• DHCP Server, Client, Relay
• DNS and DNS Proxy
• DynDNS
• UPnP
• DMZ
• Multicast/Multicast Proxy
• QoS (DSCP and Priority Queuing)
• MAC Address Filtering
WIFI1
• Dual-Band, dual-concurrent
• 802.11 a/b/g/n/ac wave 2
• MU-MIMO and 256 QAM support
• Up to 128 connected devices (64 per radio – 2.4 GHz and 5 GHz)
• Multiple SSIDs: 2 per radio (4 total)
• WPA2 Enterprise (WiFi)
• Hotspot/Captive Portal
• SSID-based Priority
• Client Mode for faster data offload
MANAGEMENT
• Cradlepoint NetCloud Manager²
• Web UI, API, CLI
• Active GPS support on all models
• Data Usage Alerts (router and per client)
• Advanced Troubleshooting (support)
• Device Alerts
• SNMP
• SMS control
• Serial Redirector
• Auto APN Recovery
• Syslog
VPN AND ROUTING
• IPsec Tunnel – up to ten concurrent sessions
• L2TP³
• GRE Tunnel
• OSPF/BGP/RIP³
• Route Filters (Access Control Lists, Prefix Filters, Route Maps, Communities for BGP)
• Per-Interface Routing
• Routing Rules
• Policy-based Routing
• NAT-less Routing
• Virtual Server/Port Forwarding
• NEMO/DMNR³
• IPv6
• VRRP³
• STP³
• NHRP³
• VTI Tunnel support³
• OpenVPN support³
• CP Secure VPN compatible
• Serial PAD Mode
SECURITY
• RADIUS and TACACS+ support*
• 802.1x authentication for Ethernet**
• Zscaler integration³
• Certificate support
• ALGs
• MAC Address Filtering
• Advanced Security Mode (local user management only)
• FIPS 140-2 Inside4
• Per-Client Web Filtering
• IP Filtering
• Content Filtering (basic)
• Website Filtering
• Zone-Based Object Firewall with host address (IP or FQDN), port, and MAC address
*-Native support for authentication. Authorization and accounting support through hotspot/captive portal services.
**-802.1x Authentication for Ethernet not available for FIPS SKUs.
CLOUD OPTIMIZED IP COMMUNICATIONS
• Automated WAN Failover/Failback support
• WAN Affinity and QoS allow prioritization of VoIP services
• Advanced VPN connectivity options to HQ
• SIP ALG and NAT to allow VoIP and UC communications to traverse firewall
• MAC Address Filtering
• 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN
• Private Network support (wired and 4G WAN)
• Cloud-based management²
1 – WiFi-related functions are only supported on IBR900 models
2 – NetCloud Manager requires a subscription
3 – Requires an Extended Enterprise License or NetCloud Manager PRIME
4 – FIPS 140-2 Inside SKUs are designated with an “F” prefix
Specifications
WAN:
• Dual-modem capable with optional COR Extensibility Dock
• Integrated LP6 Category 6 LTE Advanced LTE modem (with DC-HSPA+ failover) or LP5 Category 6 LTE Advanced LTE
modem (with DC-HSPA+ failover)
• Two LAN/WAN switchable 10/100/1000 Gigabit Ethernet ports – one default WAN (cable/DSL/T1/satellite/Metro
Ethernet)
• WiFi as WAN, Metro WiFi; 2×2 MIMO “N” 2.4 GHz or 5 GHz; 802.11 a/b/g/n/ac wave 2 (IBR900 only)
LAN:
• Dual-band, dual-concurrent WiFi; 802.11 a/b/g/n/ac wave 2 (IBR900 only)
• Two LAN/WAN switchable 10/100/1000 Gigabit Ethernet ports – one default LAN
• Serial console support for Out-of-Band Management of a connected device
PORTS:
• Power
• 2-wire GPIO
• Add more GPIO ports with optional 9-wire GPIO cable or COR Extensibility Dock (see Accessories section below)
• USB 2.0
• Two Ethernet LAN/WAN
• Two cellular antenna connectors (SMA)
• One active GPS antenna connector (SMA)
• Two WiFi antenna connectors (R-SMA)
• 15-pin dock port for COR Extensibility Dock or 9-wire GPIO cable
TEMPERATURE:
• -30 °C to 70 °C (-22 °F to 158 °F) operating with optional* 9-wire power and GPIO cable (Part #170680-000)
• -30 °C to 70 °C (-22 °F to 158 °F) operating with optional extended temperature AC power supply (Part #170648-000; see this page for line cord details)
• -20 °C to 60 °C (-4 °F to 140 °F) operating with included† standard AC power supply
• -40 °C to 85 °C (-40 °F to 185 °F) storage
* – included with “-NPS” version
† – not included with “-NPS” version
HUMIDITY (non-condensing):
• 5% to 95% operating
• 5% to 95% storage
POWER:
• DC input steady state voltage range: 9–33 VDC (requires inline fuse for vehicle installations)
• For 9–24 VDC installations, use a 3 A fuse
• For > 24 VDC installations, use a 2.5 A fuse
• Reverse polarity and transient voltage protection per ISO 7637-2
• Ignition sensing (automatic ON and time-delay OFF)
• Power consumption:
• Idle: 4 W
• WiFi Tx/Rx: 9 W
• LTE Tx/Tx: 6.25 W
• 12 VDC / 2 A adapter recommended
WIFI POWER:
• 2.4 GHz: 18 dBm conducted
• 5 GHz VHT20: 17.5 dBm conducted
• 5 GHz VHT40: 17 dBm conducted
• 5 GHz VHT80: 16.5 dBm conducted
SIZE: 4.6 × 4.5 × 1.2 in (118 × 113.5 × 29.3 mm)
WEIGHT: 14 oz (400 g)
CERTIFICATIONS:
• FCC, CE, IC
• AS, NZS, SGP (IMDA)
• WiFi Alliance (IBR900 only) – 802.11a/b/g/n/ac wave 2 certified
• Safety: UL/CUL, CB Scheme, EN60950-1
• Shock/Vibration/Humidity: compliant with MIL STD 810G and SAEJ1455
• Ingress Protection: compliant with IP54 (includes protection from dust and splashing water)
• Materials: WEEE, RoHS, RoHS-2, California Prop 65
• Telecom: PTCRB/CTIA, GCF-CC
• Regulatory Models: S5A643A, S5A644A, S5A648A, S5A701A, S5A706A
• FIPS 140-2 Inside
GPS
• GPS Protocols: TAIP and NMEA 0183 V3.0
• Satellite channels: Maximum 40 channels, simultaneous tracking
• Concurrent standalone GPS, GLONASS, BeiDou and Galileo
• 1 Hz refresh rate
• Accuracy:
• < 2 m: 50%
• < 5 m: 90%
• Horizontal: < 2 m (50%); < 5 m (90%)
• Altitude: < 4 m (50%); < 8 m (90%)
• Velocity: < 0.2 m/s
• Acquisition (measured with signal strength = -135 dBm):
• Hot start: 1 second
• Warm start: 29 seconds
• Cold start: 32 seconds
• Sensitivity
• Tracking: -160 dBm (tracking sensitivity is the lowest GNSS signal level for which the device can still detect
an in-view satellite 50% of the time when in sequential tracking mode)
• Acquisition (standalone): -145 dBm (acquisition sensitivity is the lowest GNSS signal level for which the
device can still detect an in-view satellite 50% of the time)
• Operational limits: altitude < 6000 m or velocity < 100 m/s (either limit may be exceeded, but not both)
Financing Information
Financing Information
Support Documents
IBR900
Related products
Cradlepoint IBR1700 Mobile Router
Rocket Mobile Router
Peplink Max BR1 Classic
