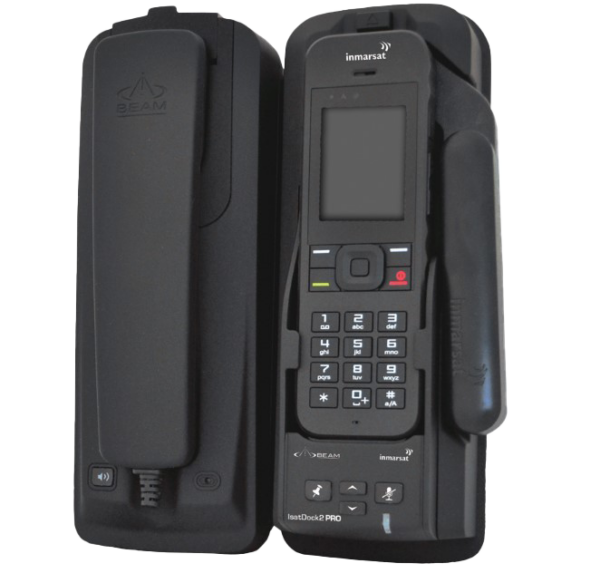

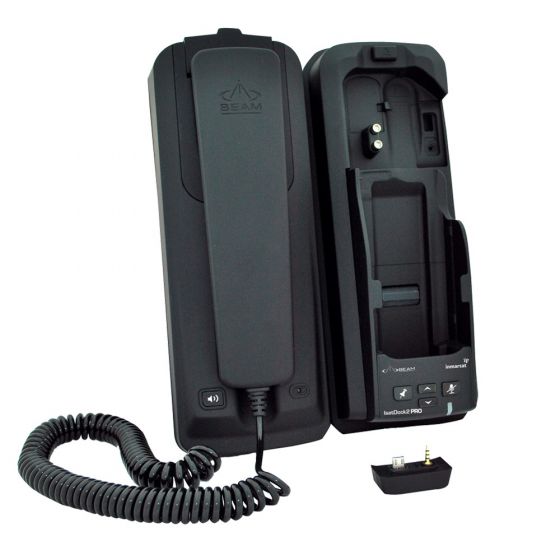

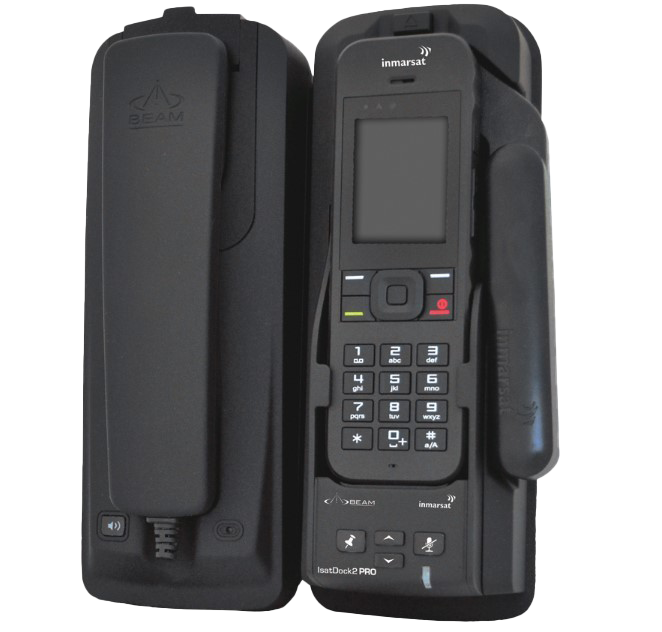

BEAM IsatDock2 PRO is an intelligent docking station for the IsatPhone 2 specifically designed to support accessing voice services via Bluetooth, RJ11/POTS, handsfree speakerphone or the active privacy handset attached to the unit. IsatDock2 PRO allows the IsatPhone 2 handset to be used in a wide variety of applications. The intelligent RJ11/POTS interface enables cable runs of up to 600m to connect standard corded, or cordless or DECT handsets to be used or alternatively interfaced with a PBX system presenting standard ring, busy and dial tones like a standard phone network.
DESIGN • All-in-one design • High quality ABS Plastic • Enhanced phone/docking mechanism • Robust USB & audio connection • Accessible control buttons • Dedicated Personal Alert button on dock • Auto sensing off hook Privacy Handset • Single action insertion • Single button release • In-built speakerphone for handsfree • Wall or desk mounting bracket • Cable routing LEFT/TOP/BOTTOM • Integrated antenna connection (GPS/GSPS) • Best suited for land/fixed site applications • Easy access to Assistance & Track buttons on IsatPhone 2 INTELLIGENT POTS/RJ11 INTERFACE • Supports up to 600m of RJ11 • Dial, ring & busy tones • Integrates to PABX • Supports standard corded & cordless phones • Auto-dial & speed dials available POWER • 10-32V DC input • 110-240V AC plug pack, included BUTTONS ON DOCK • Personal Alert button • In-call mute • Ringer volume UP/DOWN • In-call volume UP/DOWN • Speakerphone button
Specifications
POTS/RJ11: RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured frequency and adaptive impedance.
Antenna: TNC-Female
GPS Antenna: SMA-Female
10-32 VDC: 4-way microFit (AC/DC adator, or DC lead)
Privacy Handset: Port RJ9 connector
Configuration/Data: USB Micro
Speakerphone: In-built speaker/microphone
Power w/o IsatPhone: 2 130mA 1.6W
Transmit + Charging: 875mA 10.5W
Average Power Consumption Current: @ 12V Average Watts
Sleep Mode: 5mA 60mW
Peak Current: 3.5A 42W
Standby+Charging: 360mA 4.3W
Battery Charging: Temp 0°C to +45°C 32°F to +113°F
Operating Range: -30°C to +70°C -22°F to +158°F
Storage: -35°C to +85°C -31°F to +185°F
Humidity: <= 75% RH
IsatDock2 PRO (ISD2 PRO)
$1,100.00
BEAM IsatDock2 PRO is an intelligent docking station for the IsatPhone 2 specifically designed to support accessing voice services via Bluetooth, RJ11/POTS, handsfree speakerphone or the active privacy handset attached to the unit. IsatDock2 PRO allows the IsatPhone 2 handset to be used in a wide variety of applications. The intelligent RJ11/POTS interface enables cable runs of up to 600m to connect standard corded, or cordless or DECT handsets to be used or alternatively interfaced with a PBX system presenting standard ring, busy and dial tones like a standard phone network.
Description
DESIGN
• All-in-one design
• High quality ABS Plastic
• Enhanced phone/docking mechanism
• Robust USB & audio connection
• Accessible control buttons
• Dedicated Personal Alert button on dock
• Auto sensing off hook Privacy Handset
• Single action insertion
• Single button release
• In-built speakerphone for handsfree
• Wall or desk mounting bracket
• Cable routing LEFT/TOP/BOTTOM
• Integrated antenna connection (GPS/GSPS)
• Best suited for land/fixed site applications
• Easy access to Assistance & Track buttons on IsatPhone 2
INTELLIGENT POTS/RJ11 INTERFACE
• Supports up to 600m of RJ11
• Dial, ring & busy tones
• Integrates to PABX
• Supports standard corded & cordless phones
• Auto-dial & speed dials available
POWER
• 10-32V DC input
• 110-240V AC plug pack, included
BUTTONS ON DOCK
• Personal Alert button
• In-call mute
• Ringer volume UP/DOWN
• In-call volume UP/DOWN
• Speakerphone button
Specifications
POTS/RJ11: RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured frequency and adaptive impedance.
Antenna: TNC-Female
GPS Antenna: SMA-Female
10-32 VDC: 4-way microFit (AC/DC adator, or DC lead)
Privacy Handset: Port RJ9 connector
Configuration/Data: USB Micro
Speakerphone: In-built speaker/microphone
Power w/o IsatPhone: 2 130mA 1.6W
Transmit + Charging: 875mA 10.5W
Average Power Consumption Current: @ 12V Average Watts
Sleep Mode: 5mA 60mW
Peak Current: 3.5A 42W
Standby+Charging: 360mA 4.3W
Battery Charging: Temp 0°C to +45°C 32°F to +113°F
Operating Range: -30°C to +70°C -22°F to +158°F
Storage: -35°C to +85°C -31°F to +185°F
Humidity: <= 75% RH
Support Documents
IsatDock2_PRO_Brochure_Web.pdf
