Safety Vision, LLC is among the most recognized vendors of mobile video surveillance products in North America. An innovator in the mobile surveillance industry, Safety Vision has been in business for over 25 years with the goal of enhancing mobile safety and maximizing operational efficiency.
Safety Vision designs and supplies products that help improve visibility to protect assets, reduce liability, and enhance safety. Apart from Safety Vision’s core products, the company has made it a point to respond to its customers’ needs. In accordance with the demands of the marketplace, Safety Vision continues to incorporate state-of-the-art features such as wireless downloading, live viewing, GPS mapping, real-time alerts, and advanced recording technology to further enhance its safety solution. In addition, the innovative minds at Safety Vision have created an open platform system that integrates mobile and fixed cameras within a smart city environment. As technology rapidly progresses, Safety Vision will continue to utilize all resources available to create mobile surveillance solutions at the best value.

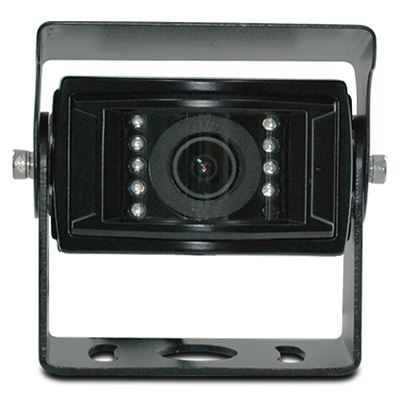

Camera The 630HD exterior camera features an ultra wide angle of 150-degrees, offering superior vehicle coverage to drivers. With HD picture quality at 720p resolution, the 630HD camera provides sharp images in both day and night time operations. Equipped with normal and mirror imaging, the 630HD is ideal for rear view, forward facing or other vehicle exterior camera placements.
720p HD resolution Automatic IRs for night time performance Threaded collar connectors screw-lock to form a solid connection Capable of multiple mounting positions

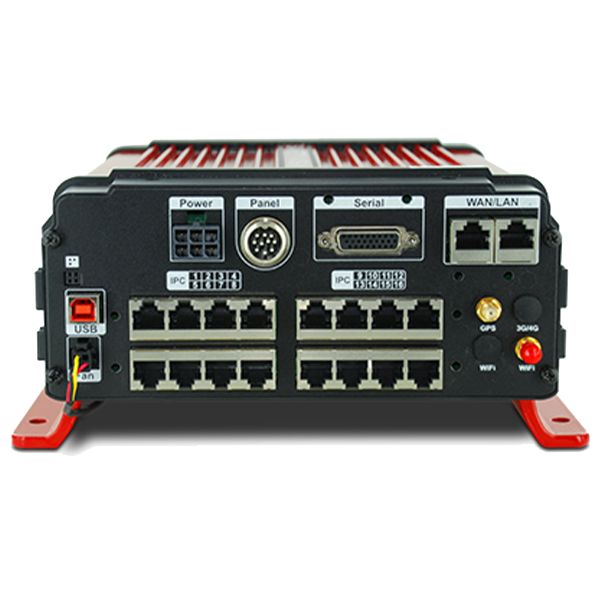

DVR The Observer 4116 Network Video Recorder is a completely IP-based solution, offering up to 16 channels of 1080p high definition recording, and dual hard drives for double the storage space. With 9 times greater resolution compared to standard surveillance systems, the Observer 4116 NVR delivers the ultimate in image quality and superior digital zoom capabilities.
Full IP-Based Solution Storage (max): 2 x 2 TB HDD or SSD (4 TB total) Mirror Recording: Up to 256 GB SD Card (optional) 8 Customizable Sensor Inputs Integrated GPS Removable Fan Base Built-in G-force Sensor WIFI and Cell Networking MIL-STD-810 Certified

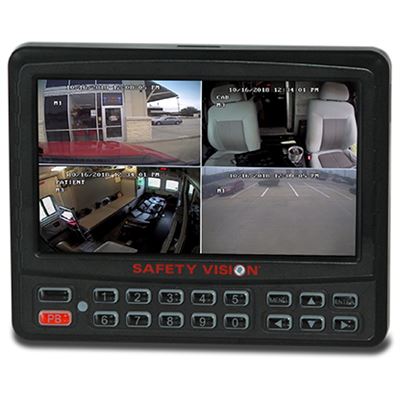

Display The CP4 monitor is specifically engineered to work exclusively with any of Safety Vision’s Observer Series of recorders, offering total plug-and-play operation. Complete with a 7-inch touch screen display, the CP4 monitor features live camera views, built-in speakers, immediate video playback, and an integrated panic button to manually trigger an event and mark critical video. The CP4 monitor is capable of displaying up to 9 camera views simultaneously, display a rear vision camera when the vehicle is in reverse gear, and includes multiple split screen modes. Authorized users with secure login credentials, have the option to sign in and access the recorder’s configuration settings, allowing for quick and easy system setupfor your fleet.
Touch Screen Monitor Integrated Panic Button Built-in Speaker Immediate Video Playback Configuration Monitor for Observer Series of Recorders
Safety Vision Video Systems
Safety Vision, LLC is among the most recognized vendors of mobile video surveillance products in North America. An innovator in the mobile surveillance industry, Safety Vision has been in business for over 25 years with the goal of enhancing mobile safety and maximizing operational efficiency.
Safety Vision designs and supplies products that help improve visibility to protect assets, reduce liability, and enhance safety. Apart from Safety Vision’s core products, the company has made it a point to respond to its customers’ needs. In accordance with the demands of the marketplace, Safety Vision continues to incorporate state-of-the-art features such as wireless downloading, live viewing, GPS mapping, real-time alerts, and advanced recording technology to further enhance its safety solution. In addition, the innovative minds at Safety Vision have created an open platform system that integrates mobile and fixed cameras within a smart city environment. As technology rapidly progresses, Safety Vision will continue to utilize all resources available to create mobile surveillance solutions at the best value.
Call for Pricing
Description
Camera
The 630HD exterior camera features an ultra wide angle of 150-degrees, offering superior vehicle coverage to drivers. With HD picture quality at 720p resolution, the 630HD camera provides sharp images in both day and night time operations. Equipped with normal and mirror imaging, the 630HD is ideal for rear view, forward facing or other vehicle exterior camera placements.
720p HD resolution
Automatic IRs for night time performance
Threaded collar connectors screw-lock to form a solid connection
Capable of multiple mounting positions
DVR
The Observer 4116 Network Video Recorder is a completely IP-based solution, offering up to 16 channels of 1080p high definition recording, and dual hard drives for double the storage space. With 9 times greater resolution compared to standard surveillance systems, the Observer 4116 NVR delivers the ultimate in image quality and superior digital zoom capabilities.
Full IP-Based Solution
Storage (max): 2 x 2 TB HDD or SSD (4 TB total)
Mirror Recording: Up to 256 GB SD Card (optional)
8 Customizable Sensor Inputs
Integrated GPS
Removable Fan Base
Built-in G-force Sensor
WIFI and Cell Networking
MIL-STD-810 Certified
Display
The CP4 monitor is specifically engineered to work exclusively with any of Safety Vision’s Observer Series of recorders, offering total plug-and-play operation. Complete with a 7-inch touch screen display, the CP4 monitor features live camera views, built-in speakers, immediate video playback, and an integrated panic button to manually trigger an event and mark critical video. The CP4 monitor is capable of displaying up to 9 camera views simultaneously, display a rear vision camera when the vehicle is in reverse gear, and includes multiple split screen modes. Authorized users with secure login credentials, have the option to sign in and access the recorder’s configuration settings, allowing for quick and easy system setupfor your fleet.
Touch Screen Monitor
Integrated Panic Button
Built-in Speaker
Immediate Video Playback
Configuration Monitor for Observer Series of Recorders
Specifications
DVR
OS SUPPORT
Linux 3.0.8
CAMERA CHANNELS
16 IP channels
VIDEO / AUDIO OUTPUT
1 channel
QUALITY SETTINGS
Adjustable 8 levels
RECORDING RESOLUTION
NTSC: 1080p @ 30 fps, 720p @ 30 fps
PAL: 1080p @ 30 fps, 720p @ 30 fps
STORAGE
2 × SATA II SSD (2 TB max each, 4 TB total)
or
2 × SATA II HDD (2 TB max each, 4 TB total)
Mirror Recording: 1 × SD card up to
256 GB max (optional)
RECORDING MODES
Continuous / scheduled / alarm
PRE-EVENT RECORDING
Configurable up to 60 minutes
POST-EVENT RECORDING
Configurable up to 30 minutes
ETHERNET
2 × RJ45 (10/100 M and 1000M)
WI-FI (ANTENNA REQUIRED)
Embedded module (802.11b/g/n)
GPS (BUILT-IN)
Antenna required
(date / time, vehicle speed, mapping data)
ACCELEROMETER
3-Axis (built-in)
INTERFACES
Front: 1 × USB 3.0 (type A), 1 × eSATA
Rear: 1 × USB 2.0 (type B), 2 × RS232,
2 × RS485
SENSORS
8 inputs, 2 outputs
POWER INPUT
8 ~ 36V DC, ACC
OPERATING TEMPERATURE
-14° F ~ 158° F (-10° C ~ 70° C)
-40° F ~ 158° F (-40° C ~ 70° C) (with heating module)
DIMENSIONS (W × H × D)
9.4 in × 4.5 in × 12.8 in
(238 mm × 115.5 mm × 324.6 mm)
CERTIFICATIONS
MIL-STD-810, IEC 60068, FCC, CE, EN50155
EMC, ISO7673
Camera
IMAGE SENSOR
AHD Sony® CCD
EFFECTIVE PIXELS
1280(h) × 960(v)
RESOLUTION
720P
FIELD OF VIEW
150°
SIGNAL FORMAT
NTSC / PAL
INFRARED ILLUMINATORS
9
MINIMUM ILLUMINATION
.05 lux
SIGNAL-TO-NOISE RATIO
>48dB
AUTO ADJUSTMENTS
White Balance, Auto Gain, Electronic
Shutter
AUDIO
Integrated microphone
IP RATING
IP68
POWER REQUIREMENT
12V DC
POWER CONSUMPTION
.9W
VIDEO OUTPUT
AHD720P
OPERATING TEMPERATURE
-4° F ~ 158° F (-20° C ~ 70° C)
PART NUMBER
SV-630HD-KIT
Display
SCREEN SIZE
7”
ASPECT RATIO
16:9
BACK LIGHT
White LED
RESPONSE TIME
10/15(Tr/Td) ms
BRIGHTNESS
400 cd/m2
RESOLUTION
800 × 480
VIEWING ANGLE
Top: 50° Bottom: 70° Left: 70° Right: 70°
SPEAKER IMPEDANCE
(16Ω, 2W) x2
IP RATING
IP53
VIBRATION RATING
5G
IMPACT RATING
49G
CAMERA CONNECTOR
4-pin aviation DIN
POWER REQUIREMENT
12V DC
POWER INPUT
DC 12 to 30 Volt Free Input
POWER CONSUMPTION
>2.4W
OPERATING TEMPERATURE
-4° F ~ 158° F (-20° C ~ 70° C)
DIMENSIONS (W × H × D)
7.28 × 5.04 × 1.37 in (184.9 × 128 × 34.8 mm)
WEIGHT
0.9 lb (.41 kg)
PART NUMBER
SV-CP4-HYB
