Thales MissionLINK provides global terrestrial communications coverage, anywhere in the world. Unaffected by weather or landscape, it is the solution to depend on for essential communications wherever your mission takes you. Whether you operate as part of a deployed force or a single individual, this solution is designed to meet your unique challenges through a simple, adaptable and robust design. MissionLINK operates using Iridium Certus broadband services over a network of 66 satellites that cover 100% of the globe. The solution utilizes this robust network service to provide highly reliable, mobile and essential voice, text and web communications for fixed sites and mobile users
For more information and pricing please contact us via email or phone call.

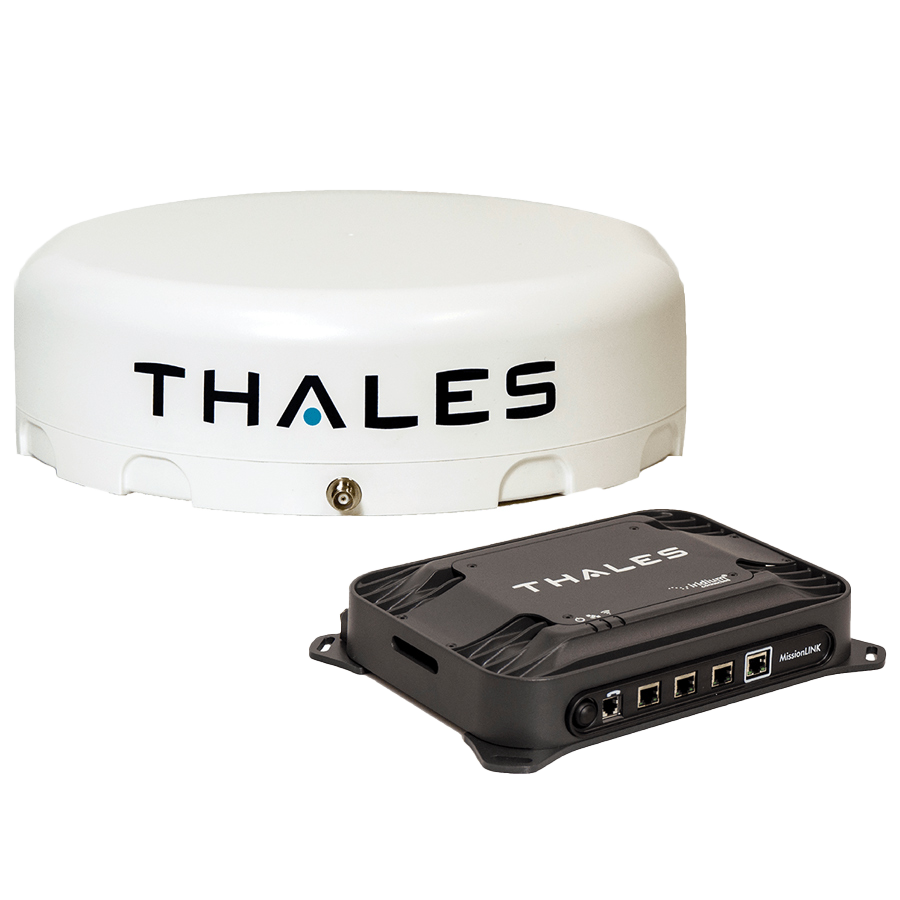

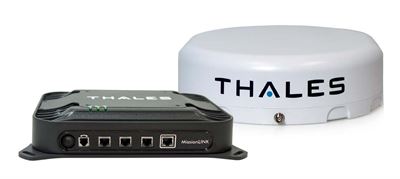

Thales MissionLINK 700
Thales MissionLINK provides global terrestrial communications coverage, anywhere in the world. Unaffected by weather or landscape, it is the solution to depend on for essential communications wherever your mission takes you. Whether you operate as part of a deployed force or a single individual, this solution is designed to meet your unique challenges through a simple, adaptable and robust design. MissionLINK operates using Iridium Certus broadband services over a network of 66 satellites that cover 100% of the globe. The solution utilizes this robust network service to provide highly reliable, mobile and essential voice, text and web communications for fixed sites and mobile users
For more information and pricing please contact us via email or phone call.
Description
· Certus 700 Services (352kbps Up/704kbps Down & 256 kbps Streaming Capable)
· 100% Global Satellite Coverage and Low Latency for Critical Data and Voice Ccommunications
· Satellite to Land Mobile Radio Extendable Network Through a Unique Radio Gateway
· Easily Integrates Terrestrial Cellular with Built-in Preferred Routing Switch
· Supports Up to (3) Concurrent Wi-Fi Devices
Specifications
Terminal Specifications
Height: 2.3 inches (5.8 cm)
Width: 12 inches (30.5 cm)
Depth: 9 inches (22.9 cm)
Weight: 7.5 pounds (3.4 kg)
Power Options
Option 1: 10–32 VDC
Option 2: AC/DC supply with 12 VDC (65 watt nominal/120 watt max)
IP Rating: IP31
Front Connectors: RJ-45 LAN (3) Class 2 PoE RJ-45 WAN (1) for cellular, VSAT and other IP connections, RJ-14 POTS (2 independent phone lines)
Rear Connectors: DC Power Input (10–32V) MIL-STD-1275D, DC Power Input (+12V Regulated), GPIO (RS-232, +12V out, Emergency, Radio Gateway, Discrete I/O), TNC — RF connection to Antenna, Wi-Fi — Reverse SMA, SIM card slot
Mechanical Vibration and Shock: MIL-STD-810G, Test Method 514.6, Procedure 1, Category 4, Annex C MIL-STD-810G, Test Method 516.6, Procedure IV
Antenna Specifications
Size: 14.5 inches diameter x 4.1 inches high (35.6 cm diameter x 10.2 cm high)
Weight: 6.2 pounds (2.8 kg)
Power: Directly powered by the terminal at 24 VDC
IP Rating: IP66
Operating Temperature: -40 to +55° C
Mechanical Vibration and Shock: MIL-STD-810G, Test Method 514.6, Procedure 1, Category 20, Annex D MIL-STD-810G, Test Method 516.6, Procedure IV
Support Documents
Thales MissionLINK Datasheet.pdf
Airtime Options
Certus Airtime Options
Financing Information
Leasing Information
